In our previous post, we solved the “Parameter Wall” by using Heuristic Ansatzes. This allowed us to represent a complex quantum state \(|\psi\rangle\) with just a few dozen parameters.
But VQE has two parts: \[E = \langle \psi | H | \psi \rangle\]
We fixed \(|\psi\rangle\) (the vector). Now we must fix \(H\) (the matrix).
It is only in textbook exercises that we are given a matrix and asked to find the lowest eigenvalue and the corresponding eigenvector. In real-world scenarios, we are almost never “given” the matrix. Instead, we start from a problem definition—a graph, a molecule, or a financial model.
Our job is to cast that problem as an eigenvalue/eigenvector problem. The general approach is to construct the Hamiltonian (\(H\)) directly from the problem definition. For large systems (e.g., 50 variables), we must do this implicitly, building \(H\) as a sum of Pauli strings without ever generating the full \(2^N \times 2^N\) matrix.
In this post, we will use the Max-Cut Problem to illustrate this approach step-by-step.
The Goal: Divide the nodes of a graph into two groups (colors) such that the number of edges connecting different colors is maximized.
Let’s define a simple graph with 5 nodes.
import networkx as nx
import matplotlib.pyplot as plt
import numpy as np
# 1. Define the Graph
num_nodes = 5
edges = [(0, 1), (1, 2), (2, 3), (3, 4), (4, 0), (0, 2)]
G = nx.Graph()
G.add_nodes_from(range(num_nodes))
G.add_edges_from(edges)
# 2. Draw the Graph
plt.figure(figsize=(6, 4))
pos = nx.spring_layout(G, seed=42)
nx.draw(G, pos, with_labels=True, node_color='lightblue', edge_color='gray', node_size=700, font_weight='bold')
plt.title("5-Node Graph for Max-Cut")
plt.show()
Before we look at quantum operators, let’s define the problem mathematically.
We represent the solution as a vector of binary variables \(x \in \{0, 1\}^N\).
For every edge \((i, j)\), we want to check if the nodes are in different groups. We can do this with the squared difference: \[C_{ij} = (x_i - x_j)^2\]
The total size of the cut is the sum over all edges: \[\text{Cut Size} = \sum_{(i,j) \in E} (x_i - x_j)^2\]
This sum can be written elegantly using matrix notation. \[\sum_{(i,j) \in E} (x_i - x_j)^2 = x^T L x\] where \(L\) is the Laplacian Matrix (\(L = D - A\)).
To maximize the cut using a minimization algorithm (like VQE), we define our energy as negative: \[E(x) = - \sum_{(i,j) \in E} (x_i - x_j)^2 = -x^T L x\]
Let’s verify this classically.
# 1. Compute Laplacian L = D - A
L = nx.laplacian_matrix(G).todense()
print("Laplacian Matrix L:")
print(L)
# 2. Evaluate Cost for every possible bitstring
dim = 2**num_nodes
best_energy = 0
best_x = None
for k in range(dim):
# Convert integer k to binary vector x (e.g., [1, 0, 1, ...])
x = np.array([(k >> i) & 1 for i in range(num_nodes)])
# Calculate Energy: E = - x^T L x
energy = - (x.T @ L @ x)
# Track the minimum (most negative is best)
if energy < best_energy:
best_energy = energy
best_x = x
print(f"\nMax Cut Size: {-best_energy}")
print(f"Best Configuration: {best_x}")Laplacian Matrix L:
[[ 3 -1 -1 0 -1]
[-1 2 -1 0 0]
[-1 -1 3 -1 0]
[ 0 0 -1 2 -1]
[-1 0 0 -1 2]]
Max Cut Size: 5
Best Configuration: [1 0 0 1 0]Classically, computing \(x^T L x\) is fast for one vector. But finding the best vector requires checking all \(2^N\) possibilities. To solve this on a quantum computer, we need to convert the binary variables \(x_i\) into quantum operators.
Let’s do this step-by-step, dotting every ‘i’ and crossing every ‘t’.
We need a quantum operator that behaves like a classical bit check. When we measure it, it should tell us if the qubit is in state \(|0\rangle\) or \(|1\rangle\).
The operator that does this is the Pauli Z matrix:
\[Z = \begin{pmatrix} 1 & 0 \\ 0 & -1 \end{pmatrix}\]
When we apply this operator to our computational basis states, the resulting eigenvalues act as our labels:
State \(|0\rangle\) (Group A): \[Z |0\rangle = (+1)|0\rangle\] The eigenvalue is +1.
State \(|1\rangle\) (Group B): \[Z |1\rangle = (-1)|1\rangle\] The eigenvalue is -1.
So, while the qubit is the object, the Pauli \(Z\) is the tool we use to extract a value (+1 or -1) that corresponds to our classical bits (0 or 1).
We need a linear equation that maps our binary variables \(x \in \{0, 1\}\) to these eigenvalues \(\lambda \in \{+1, -1\}\).
The equation that achieves this is: \[\lambda = 1 - 2x\]
Let’s check:
Now we invert that equation to express \(x\) in terms of the operator \(Z\). Since \(\lambda\) corresponds to the operator \(Z\), we can write:
\[Z = I - 2x \quad \implies \quad x = \frac{I - Z}{2}\]
This is the key. Anywhere we see \(x_i\) in our classical equation, we replace it with the operator \(\frac{I - Z_i}{2}\).
We take our classical cost function (from Section 2) and perform the substitution directly.
\[(x_i - x_j)^2 = \left( \frac{I - Z_i}{2} - \frac{I - Z_j}{2} \right)^2\]
We factor out the \(\frac{1}{2}\): \[= \frac{1}{4} \left( (I - Z_i) - (I - Z_j) \right)^2\]
The \(I\)’s cancel out: \[= \frac{1}{4} (Z_j - Z_i)^2\]
Expand the square: \[= \frac{1}{4} (Z_j^2 - Z_j Z_i - Z_i Z_j + Z_i^2)\]
We know that \(Z^2 = I\) (Pauli matrices are their own inverse) and \(Z_i, Z_j\) commute on different qubits (\(Z_i Z_j = Z_j Z_i\)): \[= \frac{1}{4} (I - 2 Z_i Z_j + I)\] \[= \frac{1}{2} (I - Z_i Z_j)\]
This is our final Hamiltonian term for one edge. To minimize energy (equivalent to maximizing the cut), we simply flip the sign:
\[H_{edge} = \frac{1}{2} (Z_i Z_j - I)\]
We can construct this implicitly for the whole graph by iterating over the edges. We map Node 0 to the first index of our list, Node 1 to the second, and so on.
from qiskit.quantum_info import SparsePauliOp
pauli_list = []
coeffs = []
for u, v in edges:
# Each edge contributes 0.5 * (Z_i Z_j - I)
# 1. The Interaction Term (0.5 * Z_i Z_j)
# Construct the string "IIZIIZ..."
op_list = ["I"] * num_nodes
op_list[u] = "Z"
op_list[v] = "Z"
# Join directly (Map Node 0 -> Leftmost Char)
p_string = "".join(op_list)
pauli_list.append(p_string)
coeffs.append(0.5)
# 2. The Constant Term (-0.5 * I)
# We track this shift separately
# Create the Operator
H_quantum = SparsePauliOp(pauli_list, coeffs)
print(f"Number of Pauli Terms: {len(H_quantum)}")
print(H_quantum)Number of Pauli Terms: 6
SparsePauliOp(['ZZIII', 'IZZII', 'IIZZI', 'IIIZZ', 'ZIIIZ', 'ZIZII'],
coeffs=[0.5+0.j, 0.5+0.j, 0.5+0.j, 0.5+0.j, 0.5+0.j, 0.5+0.j])Now we have the Implicit Matrix (\(H\)) and the Implicit State (Ansatz). We can solve the problem using VQE without ever storing \(2^N\) numbers.
To demonstrate robust results, we will use a Real Backend’s Noise Model, but execute on a local Simulator. We will use the modern Primitives V2 interface (BackendEstimatorV2 and BackendSamplerV2) which allows us to wrap our local simulator and treat it exactly like a cloud device.
from qiskit.circuit.library import real_amplitudes
from scipy.optimize import minimize
from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager
# Imports for the V2 Workflow
from qiskit_ibm_runtime import QiskitRuntimeService
from qiskit_ibm_runtime.fake_provider import FakeManilaV2
from qiskit_aer import AerSimulator
from qiskit.primitives import BackendEstimatorV2, BackendSamplerV2
# 1. Fetch the Real Backend (Source of Truth)
service = QiskitRuntimeService()
real_backend = service.least_busy(operational=True, simulator=False, min_num_qubits=num_nodes)
print(f"Fetching properties from Real Backend: {real_backend.name}")
# 2. Create a Local Simulator based on that Backend
# This copies the coupling map, basis gates, and error rates to your local machine
aer_backend = AerSimulator.from_backend(real_backend)
print(f"Running on: AerSimulator (mimicking {real_backend.name})")
# 3. Ansatz & Transpilation
ansatz = real_amplitudes(num_qubits=num_nodes, reps=3)
ansatz.measure_all() # Ensure we have measurements for the Sampler later
# Transpile against the simulator (which matches the real topology)
pm = generate_preset_pass_manager(optimization_level=3, backend=aer_backend)
isa_ansatz = pm.run(ansatz)
isa_hamiltonian = H_quantum.apply_layout(isa_ansatz.layout)
print("Ansatz Transpiled for Hardware Topology.")
# 4. Initialize V2 Primitives
# We wrap our local AerSimulator in the generic V2 wrappers
estimator = BackendEstimatorV2(backend=aer_backend)
sampler = BackendSamplerV2(backend=aer_backend)
# Set the shots (precision)
estimator.options.default_shots = 4000
sampler.options.default_shots = 2000
def cost_function(params):
# V2 Syntax: Pass a list of PUBs (Primitive Unified Blocs)
# PUB format: (circuit, observables, parameter_values)
pub = (isa_ansatz, isa_hamiltonian, params)
# Run Estimator
job = estimator.run([pub])
# Return energy (evs = eigenvalues/expectation values)
return float(job.result()[0].data.evs)
# 5. Optimization
print("Optimizing VQE parameters (local noisy simulation)...")
initial_point = np.random.random(ansatz.num_parameters)
# We use COBYLA as it is robust to noisy cost landscapes
result = minimize(cost_function, initial_point, method='COBYLA')
# Adjust for the constant shift (-0.5 per edge)
constant_shift = -0.5 * len(edges)
vqe_energy = result.fun + constant_shift
print(f"VQE Noisy Energy: {vqe_energy:.4f}")
print(f"Classical Ideal: {-best_energy:.4f}")Fetching properties from Real Backend: ibm_torino
Running on: AerSimulator (mimicking ibm_torino)
Ansatz Transpiled for Hardware Topology.
Optimizing VQE parameters (local noisy simulation)...
VQE Noisy Energy: -4.6692
Classical Ideal: 5.0000The energy tells us the size of the cut, but we need to know how to cut the graph. We sample the optimized circuit to find the most probable bitstring.
# 1. Prepare optimized circuit
# We assume the parameters from the result, but we must pass them in a PUB
# for the Sampler (circuit, parameter_values)
pub = (isa_ansatz, result.x)
# 2. Sample
job = sampler.run([pub])
# V2 Result Access: result[0].data.meas.get_counts()
# Note: 'meas' is the name of the classical register (default is usually 'meas')
counts = job.result()[0].data.meas.get_counts()
# 3. Display Counts in Decreasing Order
sorted_counts = dict(sorted(counts.items(), key=lambda item: item[1], reverse=True))
print("Top 5 Results (Counts):")
for bitstring, count in list(sorted_counts.items())[:5]:
print(f"{bitstring}: {count}")

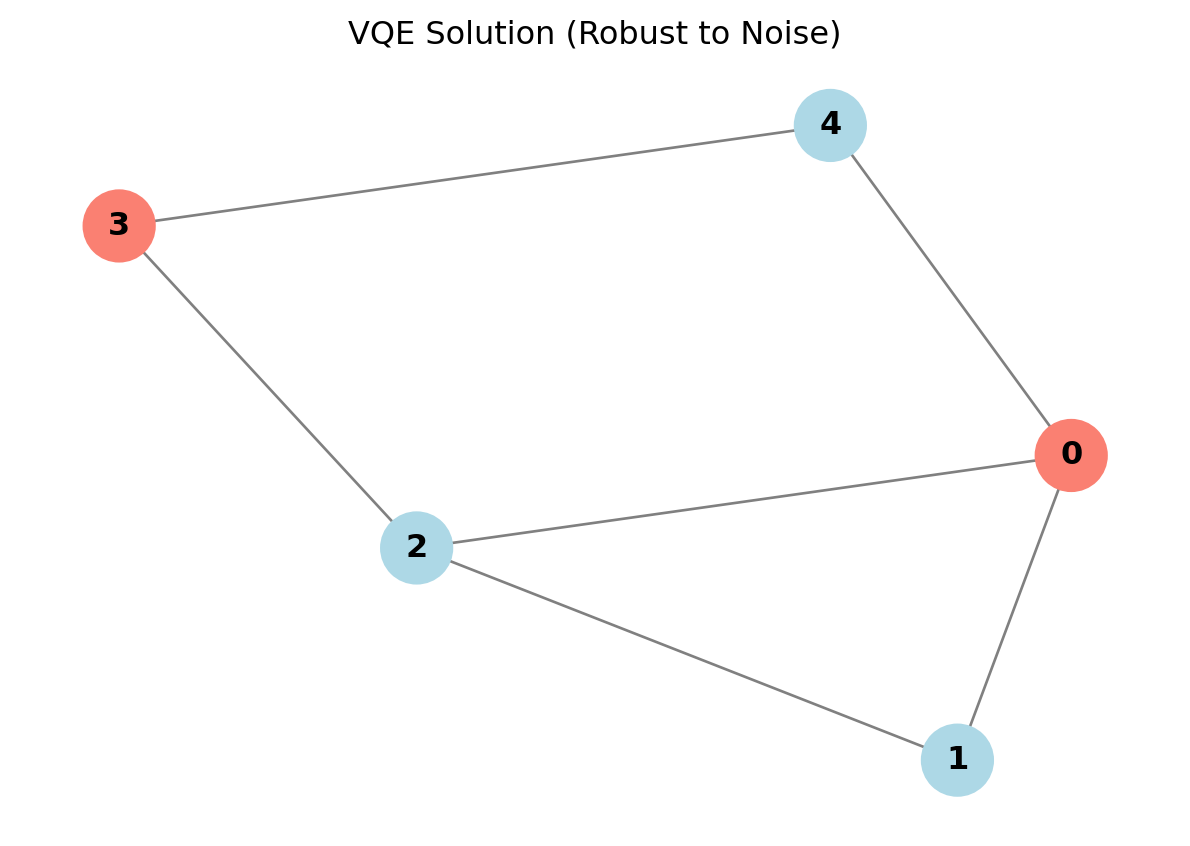

# 4. Visualize the Best Cut
best_bitstring = max(counts, key=counts.get)
print(f"\nWinning Configuration: {best_bitstring}")
colors = []
# Map bits directly: Char 0 -> Node 0
for bit in best_bitstring:
if bit == '0':
colors.append('lightblue')
else:
colors.append('salmon')
plt.figure(figsize=(6, 4))
nx.draw(G, pos, with_labels=True, node_color=colors, edge_color='gray', node_size=700, font_weight='bold')
plt.title("VQE Solution (Robust to Noise)")
plt.show()Top 5 Results (Counts):
10010: 926
11010: 791
10000: 43
11110: 32
11000: 29
Winning Configuration: 10010
10010 vs 00101You may notice something interesting. Your classical solver might output 10010, but your Quantum Sampler outputs 00101. Are they different?
No! They are the exact same solution, differing only by representation.
00101 means:
00101 (Groups: A, A, B, A, B)11010 (Groups: B, B, A, B, A) These are physically identical cuts. Flipping every bit results in the exact same cut value.We have now completed our VQE journey.
This approach allows us to attack problems far larger than our RAM can hold. However, VQE is not perfect. It is an optimization algorithm, which means it can get stuck in local minima, and training can be slow.
In the next series of posts, we will explore Quantum Krylov Methods—a completely different approach that uses linear algebra concepts (like power iteration) directly on the quantum computer to find eigenvalues without the messy optimization loop.
